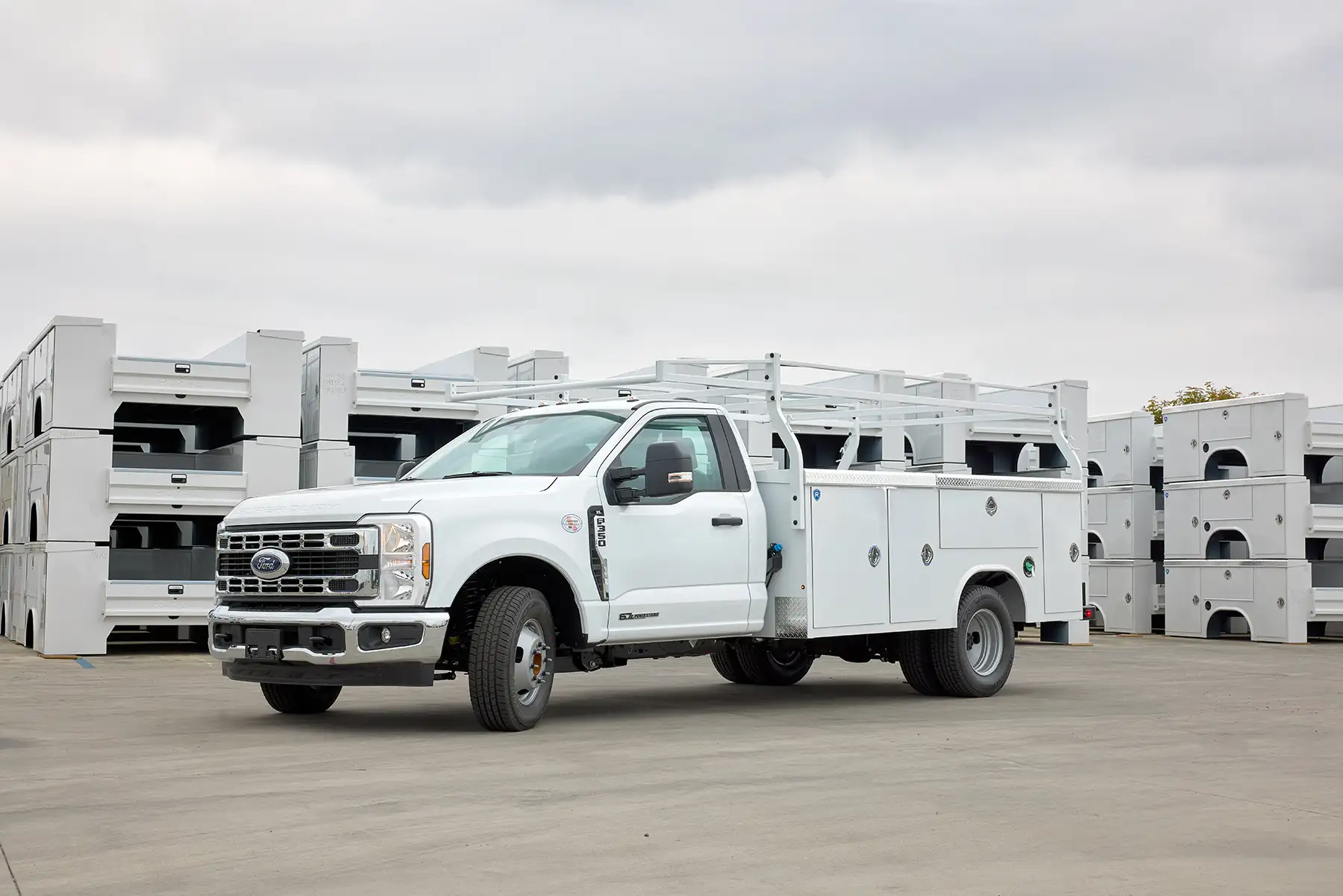

Royal XP Gen II Service Body — 11' DRW w/ Closed Top
Royal XP Gen II

Royal XP Gen II Service Body — 11' DRW w/ Closed Top

Part No. 40-VD-132XP2

Key Features

  • Fully closed, sealed tops for maximum weather protection & security
  • Fortress Security System — 5 locking points per compartment, 3 in the stainless Royal D-Handle™
  • Advanced Huck® Lock Bolt construction — vibration-tested to the equivalent of 250,000 miles
  • 4 built-in bed tie-downs rated 1,200 lb & a complete LED lighting system

Best for: The largest body with a sealed closed top — heavy crew, utility, and municipal fleets that need maximum locked, weather-protected storage.

40-VD-132XP2 — Specifications

Body Length 11 ft (132 in)
Rear Wheels Dual Rear Wheel (DRW)
Top Style Closed Top
Outside Body Width 93 in
Inside Bed Width 49 in
Body Height 40 in
Cab-to-Axle (CA) 84–88 in
Tailgate Height 13.5 in (self-leveling)
Compartment Depth 22 in
Storage Volume 106 cu ft
Approx. Body Weight 1,910 lb
Recommended Chassis Ford F-450/F-550 DRW / Chevy 3500HD–4500HD DRW

Compartment counts and interior sizes vary by configuration — ask us to confirm the exact layout for your build.

Build It Your Way

Optional Accessories Available

IML Locking System

Internal Master Lock — a single twist-handle that secures every compartment at once and accepts a padlock for added jobsite security.

Forklift-Loadable Ladder Rack

Over-cab rack tested to 1,000 lb, available forklift-loadable so a single operator can load and unload long material safely.

Spray-In Bed Liner

Durable, protective spray-in liner for the cargo bed — guards against impacts, abrasion, and corrosion from heavy daily loads.

Cab Guard / Headache Rack

Protects the cab and rear glass while preserving visibility — multiple styles available to match the body and chassis.

Roll-Top Cargo Cover

Lockable three-piece or raised roll-top cover that secures and weatherproofs the open cargo bed.

Standard on Every XP Gen II

Additional Features

  • Advanced Huck® Lock Bolt fastening system — up to 10× the fatigue strength of conventional fasteners
  • Armor Gloss® protective powder-coat finish for corrosion resistance against salt & de-icing chemicals
  • Fortress Security System — 5 locking points per compartment, 3 in the stainless steel Royal D-Handle™
  • Concealed hinges on all doors, compartments, and the tailgate
  • Double full-perimeter closed-cell neoprene compartment door seals
  • Double-paneled lap-mount compartment doors
  • 13.5" self-leveling, double-paneled locking tailgate with stainless steel cap
  • 4 built-in bed tie-downs rated 1,200 lb each
  • Complete LED lighting system & wiring harness
  • 12-gauge diamond-plate floor on 10-gauge crossmembers (A60 galvanneal steel)
  • Grip-Strut bumper with 8" step
  • Lock-in-place adjustable shelving on 2" centers
  • Bright-tread aluminum appearance package with gravel & splash guards
  • Composite fender flares & rain gutters above every door
  • 3-year / 36,000-mile limited warranty
